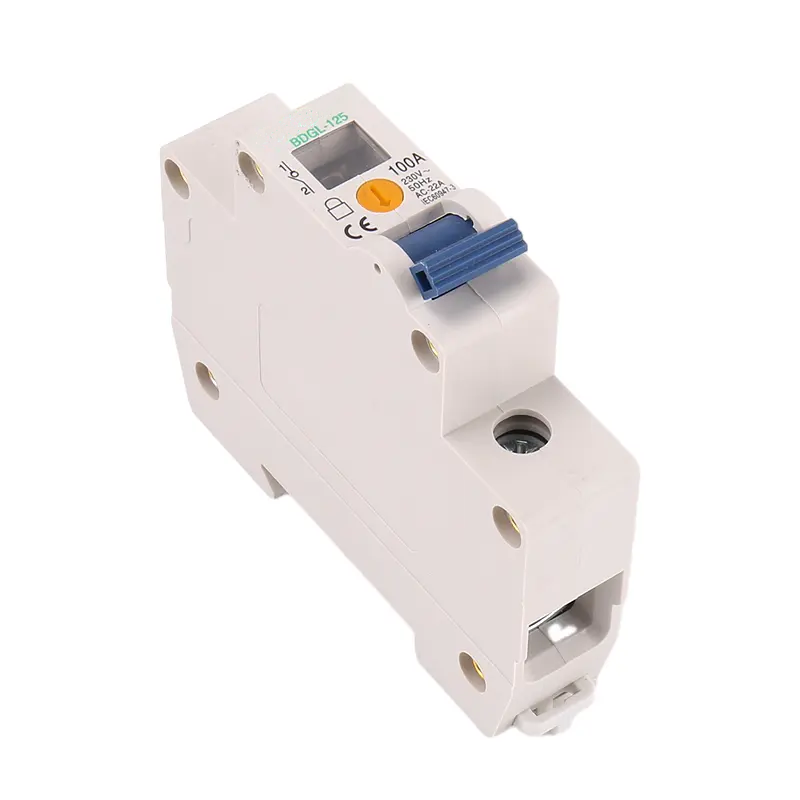

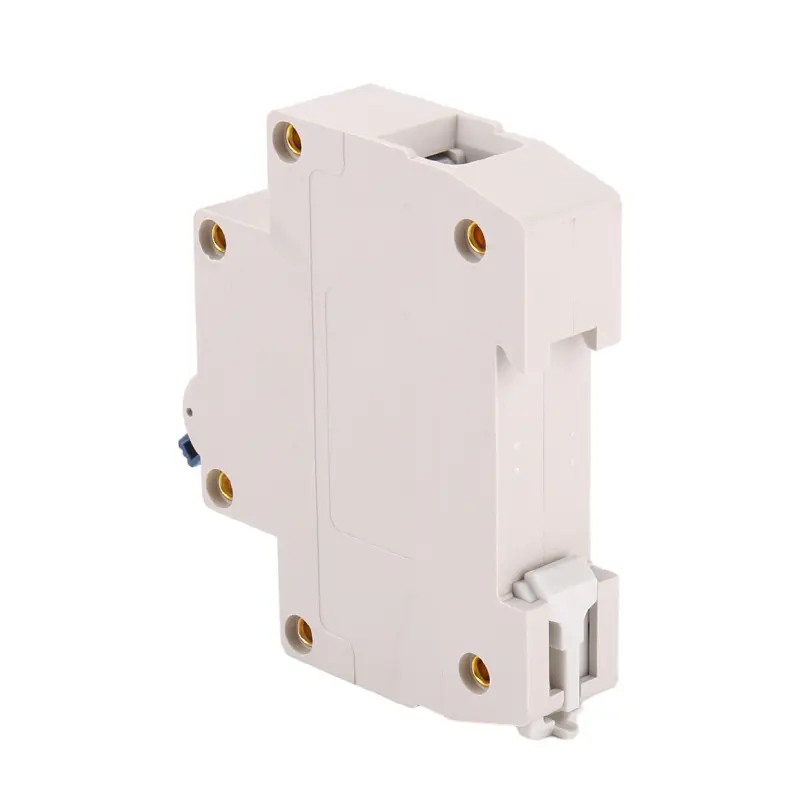

BDGL-125 100A 100 amp MCB Isolator Switch Miniature Circuit Breakers

An MCB (Miniature Circuit Breaker) is a protective device used in electrical systems for detecting and disconnecting current in an electrical circuit to prevent overloading or short-circuiting of wires and electrical equipment that could cause a fire or other hazard.MCBs are usually installed in electrical panels, and can be operated manually or automatically to disconnect the current.
  • BDGL-125

Availability:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
TypeMCB Miniature Circuit Breaker
Number of Poles
2
Rated Current(A)1-63A
VoltageAC 230/240V,400V/450V(4P)
Rated Frequency50HZ

Pole

1P/2P/3P/4P
Protection
IP20
Package TypeStandard Export Carton Or According To The Customer' Requirements
CertificateCCC CE ROSH


Features

·Short Circuit Protection: The MCB can also detect a short circuit condition in an electrical circuit and quickly disconnect the circuit. This helps prevent a sudden rise in current, thereby reducing the risk of damage to electrical equipment and personal injury.

·Cost Effectiveness: MCBs are often more cost effective than conventional fuses or other protective devices, and they have a longer service life and lower maintenance costs.


Why Choose MCB?

Overall, MCB miniature circuit breakers offer a high degree of safety, reliability and flexibility, advantages that have made them a common overload and short-circuit protection device in modern electrical systems. However, there is still a need to consider application-specific requirements and circuit characteristics when selecting and installing MCBs.
