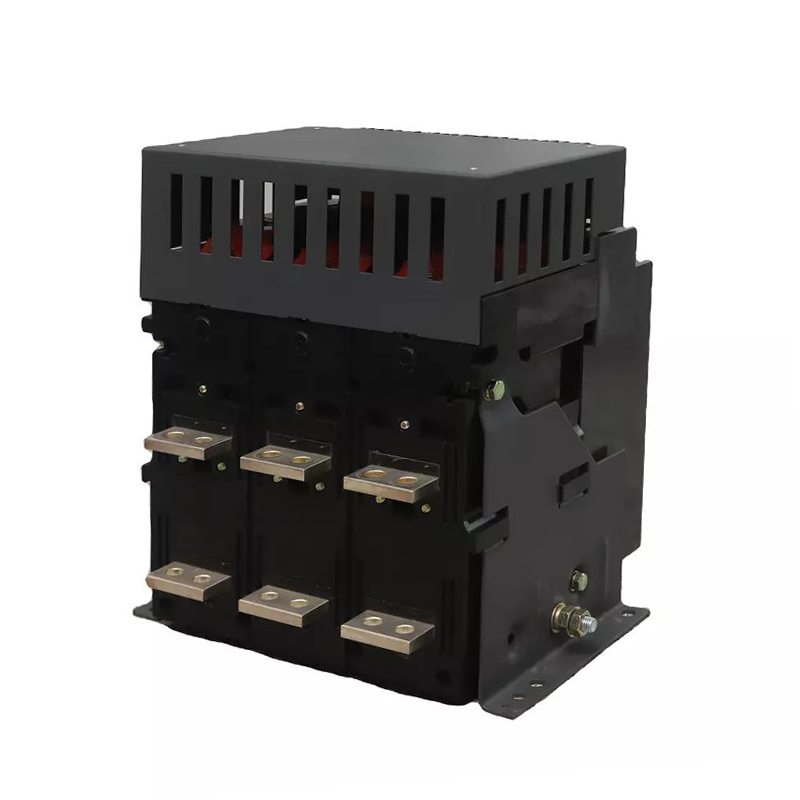

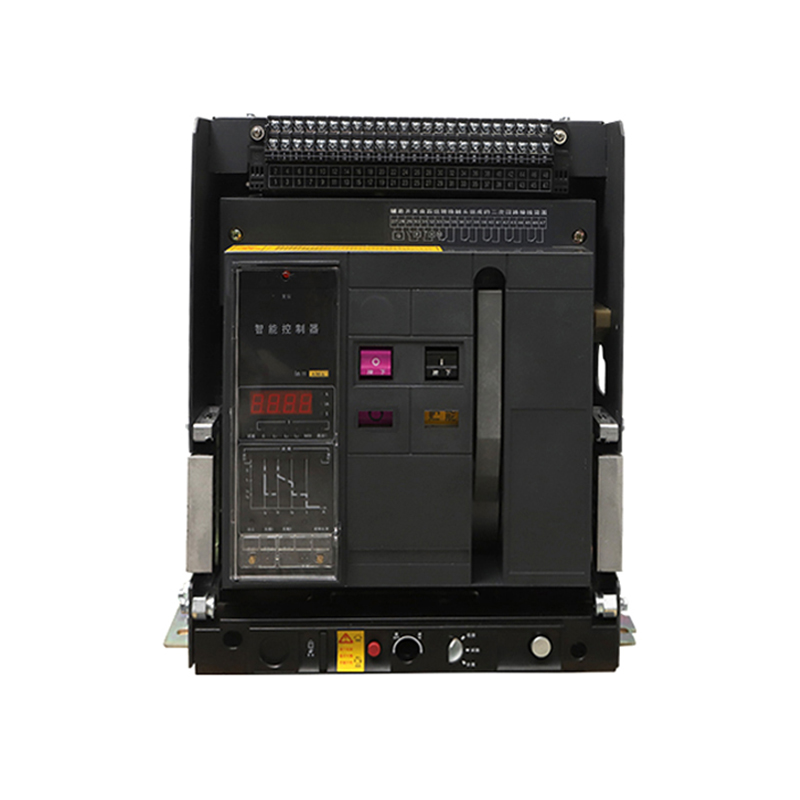

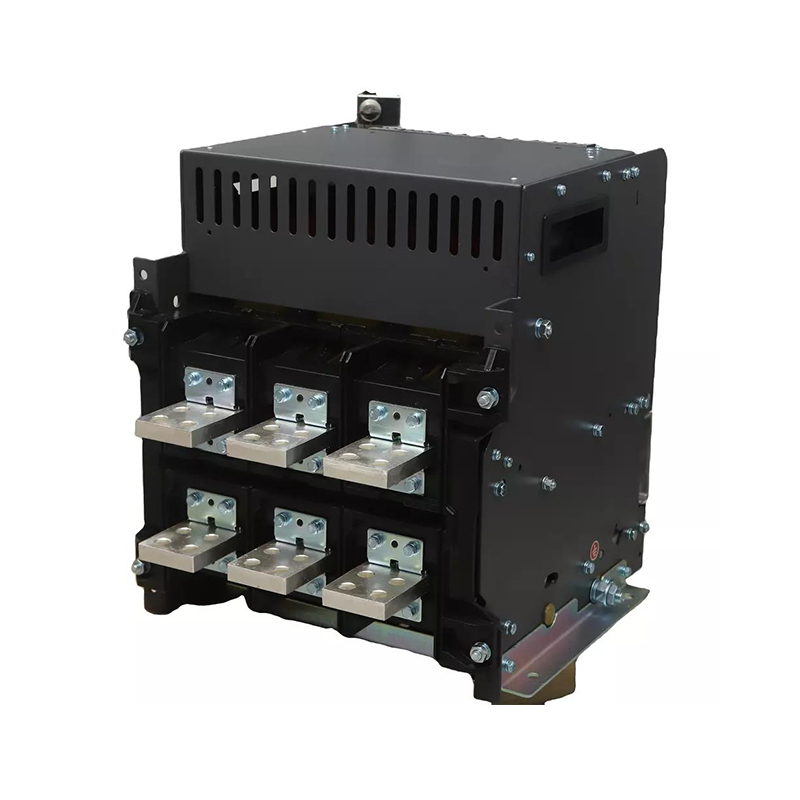

Air Circuit Breaker Draw-Out Type

ZYWW1 series intelligent universal circuit breaker (hereinafter referred to as circuit breaker), suitable for AC 50Hz, rated working voltage to 690V and below, rated current 400A-600A distribution network circuit, used to distribute electrical energy and protect the line and power supply equipment from overload, undervoltage, short circuit, single-phase grounding and other fault hazards, the circuit breaker has intelligent protection function, with high precision selective protection, which improves the reliability of the power supply.
Availability:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Parameter


Model No.

ZYWW1

Number of Poles

3/4

Type

Draw-out/ Fixed

Rated Current(A)

630-800

1000-1600

2000

2000-2500

3200

Ambient temperature (°C)

+40℃

800

1600

2000

2500

3200

+50℃

800

1550

1900

2300

2900

+60℃

800

1550

1800

2100

2500

Rated Working Voltage Ue(V)

AC 400V/690V

Rated Insulating Voltage(V)

AC 1000V

Full Fracture Delay Time without Additions (ms)

≤30

Frequency (HZ)

50

Use category

B

Rated Impulse Withstanding Voltage Uimp(V)

8000

8000

8000

Operation Life(times)

Per Hour

20

20

10

Electrical

1000

500

500

Mechanical

10000

5000

5000

Approximate Weight(kg)

3P Fixed Type

42

55

-

3P Draw-Out Type

72

95

245

4P Fixed Type

52

65

-

4P Draw-Out Type

86

115

260

Accessories

Remote Operation

Shunt release, closing electromagnet, under-voltage release time-delay type, under-voltage release instantaneous type, motor-driven energy-storage mechanism

Lock and Connection

Padlock, key lock, door interlock, connected, disconnected,test position locking mechanism, mechanism interlock

Indication Contact

Auxiliary contact, secondary wiring terminal

Operation and protection

Doorcase, phases barrier

Current Transformer

External N-pole transformer, leakage current transformer, earth current transformer

Country of origin

Yueqing, Wenzhou, Zhejiang,China



Variation of rated continuous current of circuit breakers at different ambient temperatures

Environmental Temperature

In(A)

2000/400

2000/630

2000/800

2000/1000

2000/1250

2000/1600

2000/2000

3200/2000

+40℃

400

630

800

1000

1250

1600

2000

2000

+50℃

400

630

800

1000

1250

1600

1900

2000

+60℃

700

630

800

1000

1250

1600

1800

2000



Structural Profile

·Fixed circuit breaker mainly consists of contact system, intelligent controller, manual operation mechanism, electric operation mechanism and mounting plate.

·Drawer type circuit breaker mainly consists of contact system, intelligent controller, manual operation mechanism, electric operation mechanism and drawer seat.

·The circuit breaker is in the form of three-dimensional arrangement, featuring compact structure and small size. The contact system is enclosed in the insulated base plate, and each phase of its contacts forms a small chamber. The intelligent controller, manual operating mechanism and electric operating mechanism are sequentially arranged in front of it to form independent units, which is convenient for maintenance and repair.



Performances

·Intelligent disconnectors are divided into: L-type (economic), H-type (standard), and H-type (communication).

·It has four protection features, such as overload long delay inverse time, short-circuit instantaneous protection, and asymmetrical grounding (zeroing) fault protection.

·Display function: display the working current of the circuit breaker, display various protection status.



Normal Operating Condition

·Ambient air temperature: the upper limit value does not exceed +40°C, the lower limit value does not fall below -5°C, and the average value for 24h does not exceed +35°C.

·Atmospheric conditions: Atmospheric relative humidity does not exceed 500h at an ambient air temperature of +4°C. Higher relative humidity is possible at lower temperatures, with a monthly average maximum relative humidity of 90°C in a wet month, together with an average minimum temperature of +25°C in that month, taking into account the condensation that occurs on the surface of the product as a result of the temperature change.





Features & Benefits


·Fully modular construction: the whole series is modular in design, easy to maintain and free to adjust.

·Conforms to international and national standards: IEC 60947-2/ GB14048.2


FAQ


Q: What's the warranty term?

A: 24 Months.


Q: What if there is a quality problem?

A: As long as there is a quality problem with the goods, we will provide replacement goods and cover the shipping costs to minimize the customer's losses.
