Product Introduction

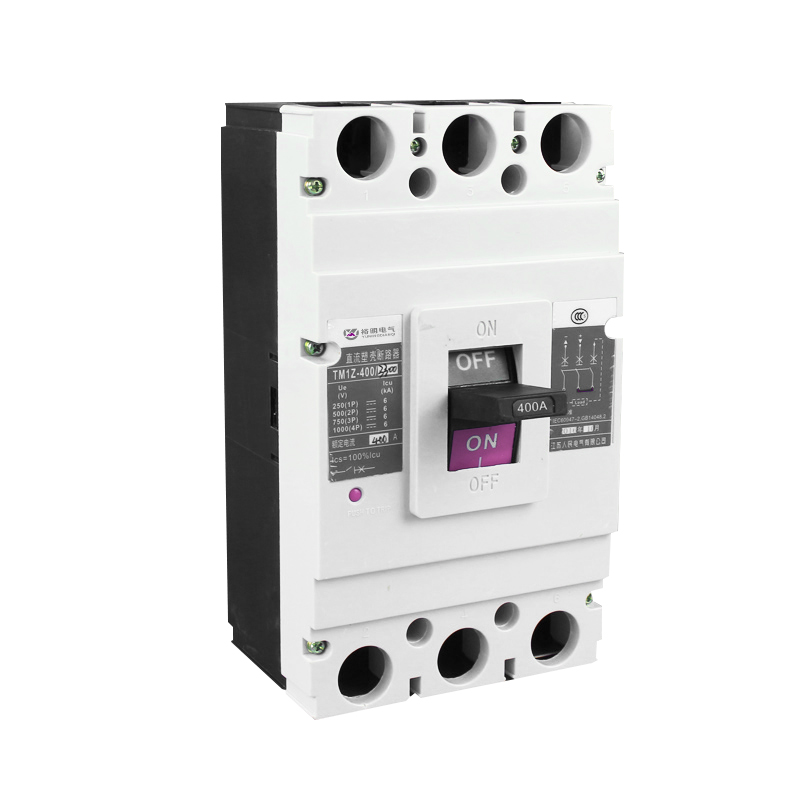

TM1Z-800 covers current of 630A,700A and 800A, rated working voltage of 500V, 750V and 1000V, rated insulation voltage of 1500V, rated impulse withstand voltage of 8kV. DC circuit breakers can be used to protect individual loads operating on DC power, or they can be used to protect main circuits such as those of inverters, solar PV arrays or battery banks.
Yuming Electric’s TM1Z-800 is designed to protect and isolate photovoltaic cell strings and could be used in PV combiner box, PV array and other photovoltaic system as an important component of protection.
Product Parameter
Model | TM1Z-800 | |
Rated current In(A) | 630,700,800 | |
Rated working voltage Ue(V)DC | 500V,750V,1000V | |
Rated insulation voltage Ui(V) | 1500V | |
Rated impulse withstand voltage Uimp(kV) | 8kV | |
Test pressure for one minute(V) | 3550 | |
Ultimate short circuit breaking capacity(kA)Icu (Ics=75%Icu) | 250V | 50 |
500V | 50 | |
750V | 50 | |
1000V | 50 | |
Mechanical life | Total number of times | 2500 |
Electrical life | Total number of times | 800 |
Total breaking time (ms) | 20 | 20 |
Mounting position | Any position | |
Availability of isolation characteristics | Yes | |
Standard | IEC60947-2、IEC60947-1、GB14048.1、GB14048.2 | |
Permissible ambient temperature | -25℃~+50℃ | |
Protection class | IP20 | |
Available with accessories | Auxiliary, alarm, sub-excitation, hand-operated, electrically operated, mechanical interlock | |
Arcing distance(mm) | ≧50 | |
Instantaneous action value | 12In | |
Mounting method | Fixed, insertion type |
Features
◆ Small volume, short arcing distance, complete accessories and multiple wiring.
◆ Installation flexibility and high breaking capacity.
◆ Fixed and withdrawable versions.
◆ Designed to distribute electricity and protect circuits and electrical equipment in solar systems from overload.
◆ Applied in PV combiner box, inverters, PV module and other DC applications.
FAQ
Q:Can I use MCCB as main switch?
A:Circuit breakers may work more effectively as safety switches, but they are not switches. They are not interchangeable. It is therefore not recommended that circuit breakers are used as switches.
Q:What’s the payment term you support?
A:You can pay through T/T, paypal, Western Union, Alipay, RMB,etc.
