Product Introduction

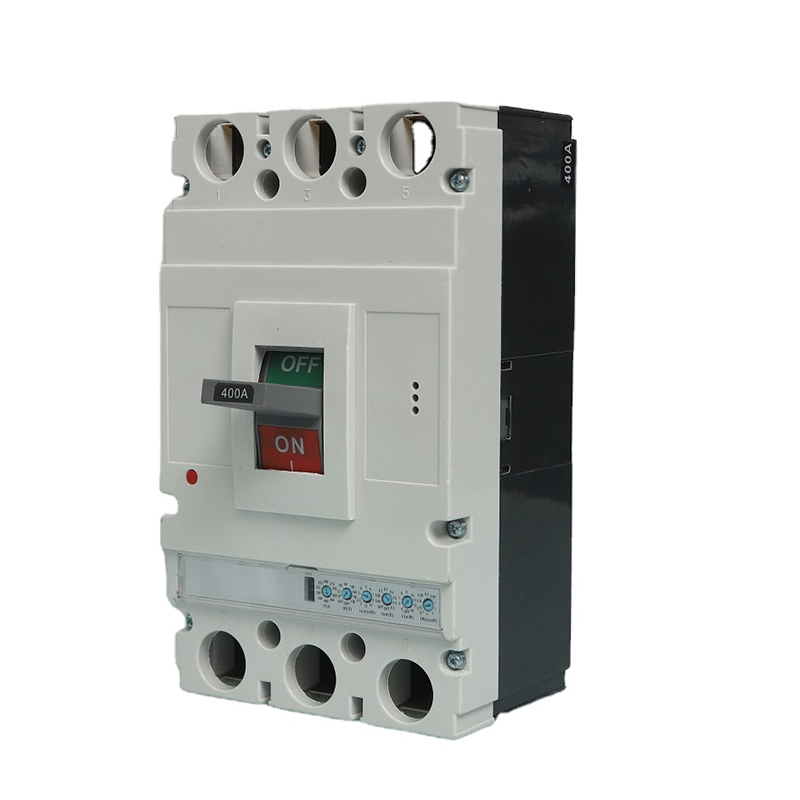

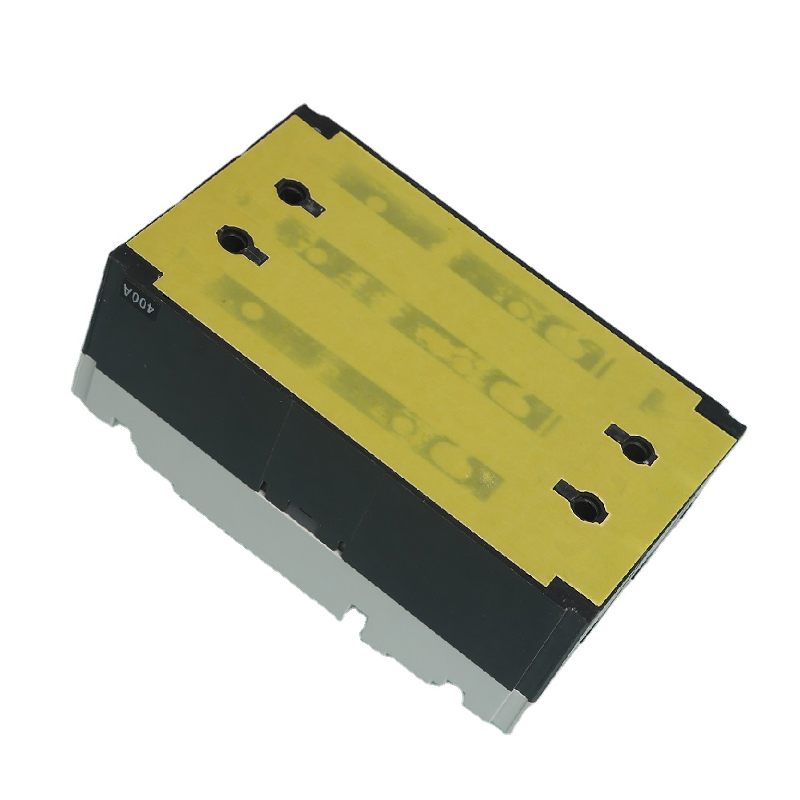

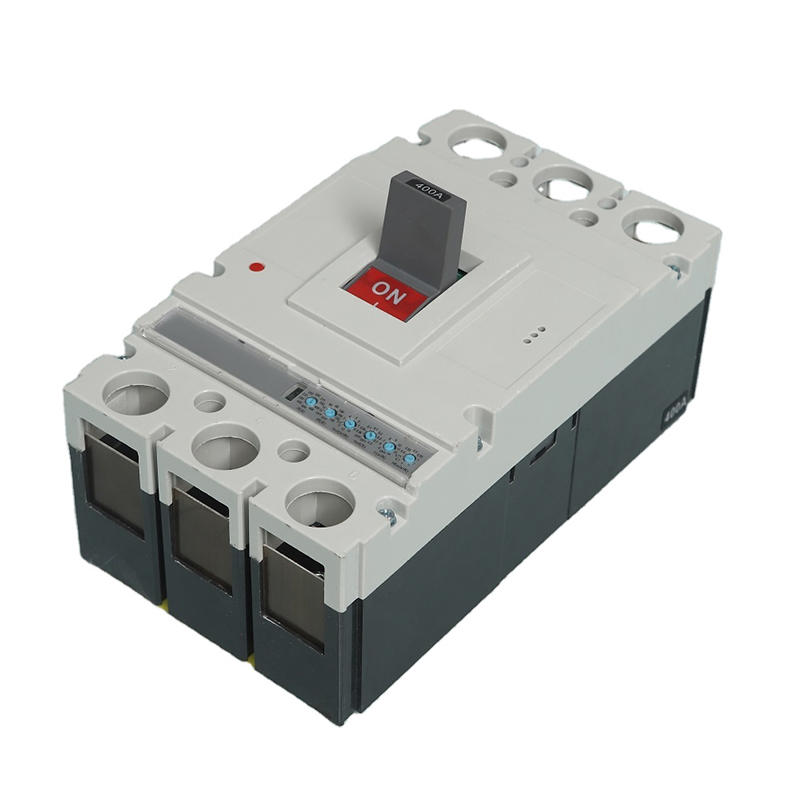

Equipped with the protection devices for short-circuit and over-current, Yuming Electrc’s electronic moulded case circuit breaker is capable of preventing damage of circuit according to ISO9001.
As a superior supplier of moulded case circuit breaker, Yuming Electric always insists on the quality of raw material to ensure performance of MCCB.
Product Parameter
Model | ZYMM1E-400 | |||||
Rated current(A) | 200，225，250，280，315，350，400 | |||||
Rated working voltage(V) | AC 400V | |||||
Rated insulation voltage(V) | AC 800V | |||||
Rated impulse withstand voltage | AC 8000V | |||||
Number of poles | 3 | 4 | ||||
Rated ultimate short circuit breaking capacity class | S | H | H | |||
Rated ultimate short-circuit breaking capacity Icu(kA) | 50 | 70 | 70 | |||
Rated ultimate short circuit breaking capacity Ics(kA) | 35 | 50 | 50 | |||
Use category | B | |||||
Operational performance(times) | Electrify | 2000 | ||||
No electricity | 4000 | |||||
Dimensions(mm) | L | 257 | ||||
M | 150 | 198 | ||||
H | 106.5 | |||||
Arcing distance | ≦106.5 | |||||
Features
◆ Can be connected to intelligent control modules: conversion of optically isolated contact signal outputs, including programmable DO output function
◆ MCU microprocessor controller for stable and reliable performance
◆ Fault self-diagnosis function: protection and detection of the working state and operation of the intelligent controller itself
◆ Pre-alarm function, overload indication: when the load current reaches or exceeds a fixed value, it is equivalent to the light guide column exporting the light source
◆ Temperature monitoring and protection function: when the ambient temperature exceeds the set value (default setting 85°), the controller will output an alarm photoelectric signal or make the circuit breaker break
FAQ
Q:What kind of certificate do you have ?
A: We have ISO9001, 3C.
Q:What’s the payment term?
A:You can pay through T/T, paypal, Western Union, Alipay, etc.
Q:What’s the warranty term?
A:We offer 2 years warranty for all the products.
